| Format | Model No. | Rated Capacity(mAh) | Min Capacity(mAh) | Height(mm) | Diameter(mm) | Std Charge Current(mA) | Std Charge Time(h) | Rapid Charge Current(mA) | Rapid Charge Time(h) | Weight(g) | Max Continuous Discharge | Cycle Life(IEC) | Target Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | 60D8000 | 8000 | 7700 | 60.5 | 32.5 | 800 | 16 | 1600 | 7 | 172 | 8000mA(1C) | ≥500 | Large Emergency Lights, Backup Power Supply |
| D | 60D9000 | 9000 | 8700 | 60.5 | 32.5 | 900 | 16 | 1800 | 7 | 186 | 9000mA(1C) | ≥500 | Industrial Power Equipment, Searchlight |
| D | 60D10000 | 10000 | 9700 | 60.5 | 32.5 | 1000 | 16 | 2000 | 7 | 202 | 10000mA(1C) | ≥400 | Solar Energy Storage, Marine Backup Power |

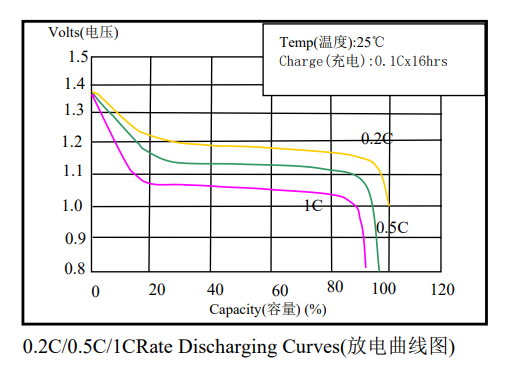

Large capacity D size cell, stable 0.2C standard discharge performance
D8000~9000 ≥500 cycles; D10000 ≥400 cycles
Built-in -ΔV & temperature cutoff protection circuit required

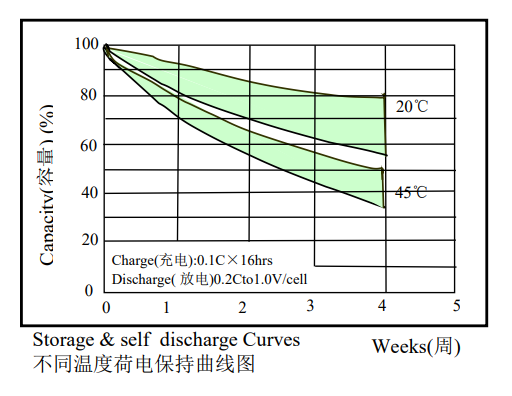

20℃ storage self-discharge standard per delivery spec
Storage temp range -20~55℃ within 30 days
Short circuit / vibration / drop test passed, no explosion risk
